PneumaCult™-ALI Medium
Serum- and BPE-free medium for human airway epithelial cells cultured at the air-liquid interface
You may notice that your reagent packaging looks slightly different from images displayed here or from previous orders. Due to pandemic-related plasticware shortages, we are temporarily using alternative bottles for this product. Rest assured that the products themselves and how you should use them have not changed.
Required Products
-
PneumaCult™-Ex MediumSerum- and BPE-free medium for expansion of primary human airway epithelial cells
-
Heparin SolutionCell culture supplement
-
Hydrocortisone Stock SolutionCell culture supplement
-
PneumaCult™-Ex Plus MediumSerum- and BPE-free medium for expansion of primary human airway epithelial cells
Overview
PneumaCult™-ALI Medium (Catalog #05001) is a serum- and BPE-free medium for the culture of human airway epithelial cells at the air-liquid interface (ALI). Airway epithelial cells cultured in PneumaCult™-ALI Medium undergo extensive mucociliary differentiation to form a pseudostratified epithelium that exhibits morphological and functional characteristics similar to those of the human airway in vivo. PneumaCult™-ALI Medium is also available in a kit that includes 12 mm Transwell® inserts (Catalog #05021) or 6.5 mm Transwell® inserts (Catalog #05022).
Together, PneumaCult™-ALI Medium and PneumaCult™-Ex Plus Medium (Catalog #05040) constitute a fully integrated BPE-free culture system for in vitro human airway modeling. This robust and defined system is a valuable tool for basic respiratory research, toxicity studies, and drug development.
Learn how to culture human airway epithelial cells at the ALI in our On-Demand Pulmonary Course or browse our Frequently Asked Questions (FAQs) about the ALI culture workflow using PneumaCult™.
Together, PneumaCult™-ALI Medium and PneumaCult™-Ex Plus Medium (Catalog #05040) constitute a fully integrated BPE-free culture system for in vitro human airway modeling. This robust and defined system is a valuable tool for basic respiratory research, toxicity studies, and drug development.
Learn how to culture human airway epithelial cells at the ALI in our On-Demand Pulmonary Course or browse our Frequently Asked Questions (FAQs) about the ALI culture workflow using PneumaCult™.
Advantages
• HBECs cultured with PneumaCult™-ALI undergo extensive mucociliary differentiation to form a pseudostratified epithelium that closely resembles the human airway
• PneumaCult™-ALI is serum-free and BPE-free to minimize variability
• PneumaCult™-ALI is serum-free and BPE-free to minimize variability

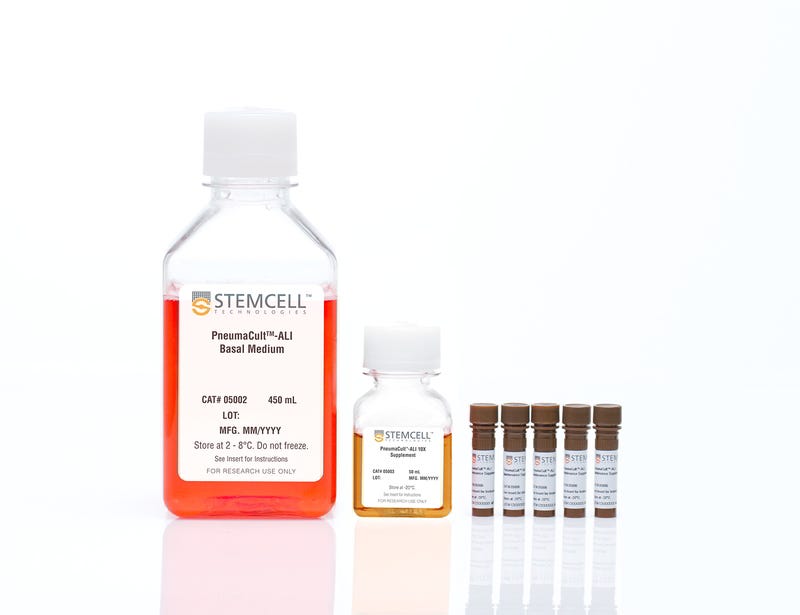

Components
- PneumaCult™-ALI Basal Medium, 450 mL
- PneumaCult™-ALI 10X Supplement, 50 mL
- PneumaCult™-ALI Maintenance Supplement (100X), 5 x 1 mL
Subtype
Specialized Media
Cell Type
Airway Cells
Species
Human
Application
Cell Culture, Differentiation, Maintenance, Organoid Culture
Brand
PneumaCult
Area of Interest
Disease Modeling, Drug Discovery and Toxicity Testing, Epithelial Cell Biology
Formulation
Serum-Free
Related Products
Related Products
Scientific Resources
Product Documentation
| Document Type | Product Name | Catalog # | Lot # | Language |
|---|---|---|---|---|
|
Document Type
Product Information Sheet
|
Product Name
PneumaCult™-ALI Medium with 12 mm Transwell® Inserts
|
Catalog #
05021 |
Lot #
All |
Language
English |
|
Document Type
Product Information Sheet
|
Product Name
PneumaCult™-ALI Medium with 6.5 mm Transwell® Inserts
|
Catalog #
05022 |
Lot #
All |
Language
English |
|
Document Type
Product Information Sheet
|
Product Name
PneumaCult™-ALI Medium
|
Catalog #
05001 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 1
|
Product Name
PneumaCult™-ALI Medium with 12 mm Transwell® Inserts
|
Catalog #
05021 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 2
|
Product Name
PneumaCult™-ALI Medium with 12 mm Transwell® Inserts
|
Catalog #
05021 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 3
|
Product Name
PneumaCult™-ALI Medium with 12 mm Transwell® Inserts
|
Catalog #
05021 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 1
|
Product Name
PneumaCult™-ALI Medium with 6.5 mm Transwell® Inserts
|
Catalog #
05022 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 2
|
Product Name
PneumaCult™-ALI Medium with 6.5 mm Transwell® Inserts
|
Catalog #
05022 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 3
|
Product Name
PneumaCult™-ALI Medium with 6.5 mm Transwell® Inserts
|
Catalog #
05022 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 1
|
Product Name
PneumaCult™-ALI Medium
|
Catalog #
05001 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 2
|
Product Name
PneumaCult™-ALI Medium
|
Catalog #
05001 |
Lot #
All |
Language
English |
|
Document Type
Safety Data Sheet 3
|
Product Name
PneumaCult™-ALI Medium
|
Catalog #
05001 |
Lot #
All |
Language
English |
Educational Materials (18)
Brochure
Modeling Cystic Fibrosis Airway: PneumaCult™-Ex Plus and PneumaCult™-ALI
Brochure
PneumaCult™ Culture Media for Human Airway Epithelial Cells
Technical Bulletin
Air-Liquid Interface Culture for Respiratory Research
Protocol
How to Perform Immunocytochemistry (ICC) Staining of Epithelial Cells Cultured as Monolayers or at the Air-Liquid Interface
Video
5:03
How to Model the Human Airway at the Air-Liquid Interface: Differentiation of HBECs
Video
3:55
Why Use Air-Liquid Interface Cultures for Respiratory Research: Q&A with Dr. Wadsworth
Video
4:25
How to Perform a TEER Measurement to Evaluate Epithelial Barrier Integrity in ALI Cultures
Video
2:13
How to Model the Human Airway at the Air-Liquid Interface: Introduction
Video
3:02
Correlating TEER Values with Air-Liquid Interface Culture Morphology
Video
7:42
How to Model the Human Airway at the Air-Liquid Interface: Expansion of HBECs
Video
2:01
Air-Liquid Interface (ALI) Culture of Bronchial Epithelial Cells with PneumaCult™-ALI Medium
Webinar
51:30
Studying Cystic Fibrosis Using Primary Human Nasal Epithelial Cells
Webinar
18:41
In Vitro Human Airway Modeling Using Primary Airway Epithelial Cells
Webinar
47:25
PneumaCult™-ALI: An Improved Medium Formulation for the Differentiation of Human Bronchial Epithelial Cells
Webinar
6:56
Studying Respiratory Viruses with ALI Cultures
Webinar
52:35
Organoid Expert Panel
Mini Review
Airway Epithelial Cells of the Human Respiratory System
Scientific Poster
PneumaCult™: an Integrated Culture Medium System for in Vitro Human Airway Modeling
Load More Educational Materials
Product Applications
This product is designed for use in the following research area(s) as part of the highlighted workflow stage(s). Explore these workflows to learn more about the other products we offer to support each research area.
Research Area
Workflow Stages
Workflow Stages for
Airway Epithelial Cell Research
Data and Publications
Data

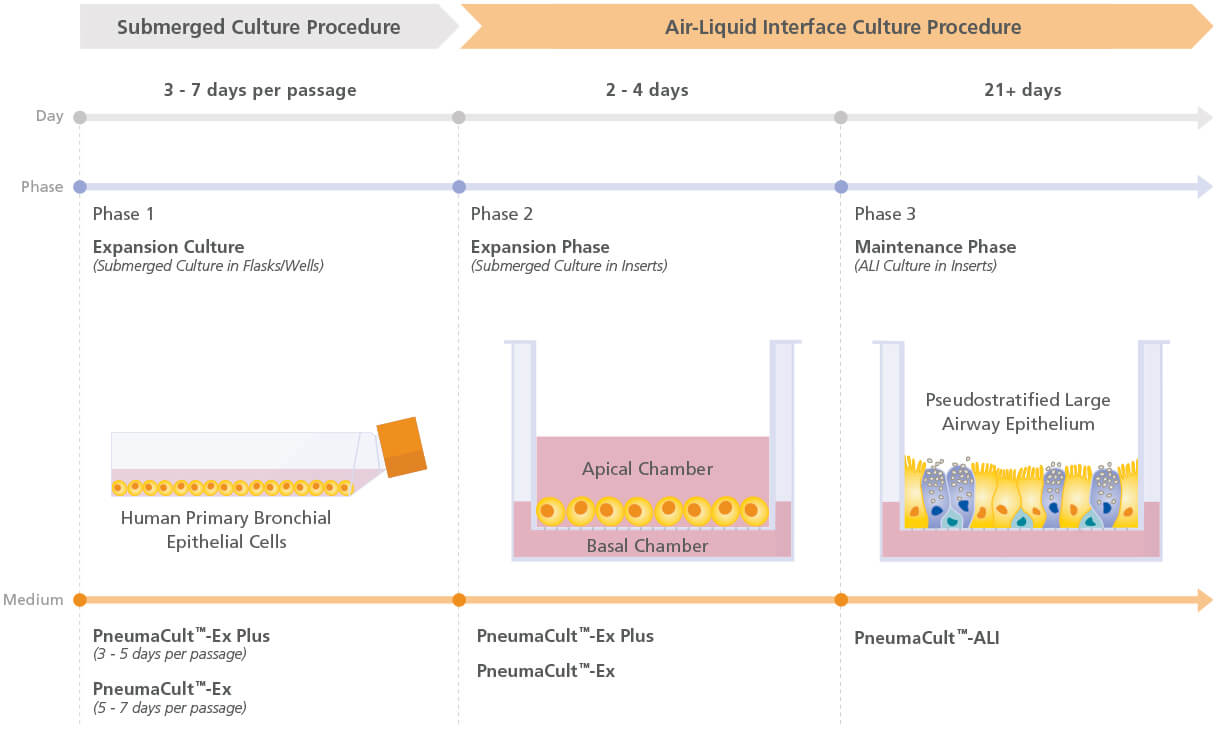

Figure 1. Overview of the PneumaCult™ Culture System
Expansion of human bronchial epithelial cells (HBECs) in submerged culture is performed with PneumaCult™-Ex Plus or PneumaCult™-Ex. During the early Expansion Phase of the ALI culture procedure, PneumaCult™-Ex Plus or PneumaCult™-Ex is applied to the apical and basal chambers. Upon reaching confluence, the culture is air-lifted by removing the culture medium from both chambers, and adding PneumaCult™-ALI to the basal chamber only. Differentiation into a pseudostratified mucociliary epithelium is obtained following 21-28 days of incubation and can be maintained for more than one year.
Figure 2. HBECs Cultured in PneumaCult™-Ex Successfully Differentiate into a Pseudostratified Mucociliary Epithelium with PneumaCult™-ALI
Early-passage (P1-3) HBECs cultured in PneumaCult™-Ex successfully differentiate when cultured at air-liquid interface with PneumaCult™-ALI for 28 days. H&E staining revealed the pseudostratifi ed structure of the epithelium with cilia present at the apical surface (A). Periodic acid-Schiff staining demonstrated the presence of goblet cells (B). The presence of ciliated and goblet cells was also demonstrated by immunofl uorescence staining of cilia marker acetylated (AC)-Tubulin (green; C) and the goblet cell marker Mucin5AC (green; D). Appropriate positioning of basal cells along the transwell insert was visualized by immunofl uorescence staining using the basal cell markers p75NTR (green) and p63 (red; E,F). A representative merged image indicates the apical cells, detected by DAPI alone, positioned along the epithelium and in close contact with the basal cells (detected by DAPI, p63 and p75NTR co-labeling) located along the insert (G).
Figure 3. Electrophysiological characterization of differentiated HBECs (P4) that were expanded in PneumaCult™-Ex Plus, PneumaCult™-Ex, and Bronchial Epithelial Growth Media
TEER (A) and representative characterization of the ion channel activities (B) for ALI cultures at 28 days post air-lift using HBECs expanded in PneumaCult™-Ex Plus, PneumaCult™-Ex, or Bronchial Epithelial Growth Media. Amiloride: ENaC inhibitor. IBMX and Forskolin: CFTR activators. Genistein: CFTR potentiator. CFTRinh-172: CFTR inhibitor. UTP: Calciumactivated Chloride channels (CaCCs) activator. All ALI differentiation cultures were performed using PneumaCult™-ALI.
Publications (98)
Cells 2020 sep
Choice of Differentiation Media Significantly Impacts Cell Lineage and Response to CFTR Modulators in Fully Differentiated Primary Cultures of Cystic Fibrosis Human Airway Epithelial Cells.
Abstract
Abstract
In vitro cultures of primary human airway epithelial cells (hAECs) grown at air-liquid interface have become a valuable tool to study airway biology under normal and pathologic conditions, and for drug discovery in lung diseases such as cystic fibrosis (CF). An increasing number of different differentiation media, are now available, making comparison of data between studies difficult. Here, we investigated the impact of two common differentiation media on phenotypic, transcriptomic, and physiological features of CF and non-CF epithelia. Cellular architecture and density were strongly impacted by the choice of medium. RNA-sequencing revealed a shift in airway cell lineage; one medium promoting differentiation into club and goblet cells whilst the other enriched the growth of ionocytes and multiciliated cells. Pathway analysis identified differential expression of genes involved in ion and fluid transport. Physiological assays (intracellular/extracellular pH, Ussing chamber) specifically showed that ATP12A and CFTR function were altered, impacting pH and transepithelial ion transport in CF hAECs. Importantly, the two media differentially affected functional responses to CFTR modulators. We argue that the effect of growth conditions should be appropriately determined depending on the scientific question and that our study can act as a guide for choosing the optimal growth medium for specific applications.
Redox biology 2020 sep
Glutaredoxin deficiency promotes activation of the transforming growth factor beta pathway in airway epithelial cells, in association with fibrotic airway remodeling.
Abstract
Abstract
S-glutathionylation of reactive protein cysteines is a post-translational event that plays a critical role in transducing signals from oxidants into biological responses. S-glutathionylation can be reversed by the deglutathionylating enzyme glutaredoxin (GLRX). We have previously demonstrated that ablation of Glrx sensitizes mice to the development of parenchymal lung fibrosis(1). It remains unclear whether GLRX also controls airway fibrosis, a clinical feature relevant to asthma and chronic obstructive pulmonary disease, and whether GLRX controls the biology of airway epithelial cells, which have been implicated in the pathophysiology of these diseases. In the present study we utilized a house dust mite (HDM) model of allergic airway disease in wild type (WT) and Glrx-/- mice on a C57BL/6 background prone to develop airway fibrosis, and tracheal basal stem cells derived from WT mice, global Glrx-/- mice, or bi-transgenic mice allowing conditional ablation of the Glrx gene. Herein we show that absence of Glrx led to enhanced HDM-induced collagen deposition, elevated levels of transforming growth factor beta 1 (TGFB1) in the bronchoalveolar lavage, and resulted in increases in airway hyperresponsiveness. Airway epithelial cells isolated from Glrx-/- mice or following conditional ablation of Glrx showed spontaneous increases in secretion of TGFB1. Glrx-/- basal cells also showed spontaneous TGFB pathway activation, in association with increased expression of mesenchymal genes, including collagen 1a1 and fibronectin. Overall, these findings suggest that GLRX regulates airway fibrosis via a mechanism(s) that involve the plasticity of basal cells, the stem cells of the airways.
Journal of cystic fibrosis : official journal of the European Cystic Fibrosis Society 2020 sep
Functional rescue of c.3846G\textgreaterA (W1282X) in patient-derived nasal cultures achieved by inhibition of nonsense mediated decay and protein modulators with complementary mechanisms of action.
Abstract
Abstract
BACKGROUND The nonsense mutation, c.3846G{\textgreater}A (aka: W1282X-CFTR) leads to a truncated transcript that is susceptible to nonsense-mediated decay (NMD) and produces a shorter protein that is unstable and lacks normal channel activity in patient-derived tissues. However, if overexpressed in a heterologous expression system, the truncated mutant protein has been shown to mediate CFTR channel function following the addition of potentiators. In this study, we asked if a quadruple combination of small molecules that together inhibit nonsense mediated decay, stabilize both halves of the mutant protein and potentiate CFTR channel activity could rescue the functional expression of W1282X-CFTR in patient derived nasal cultures. METHODS We identified the CFTR domains stabilized by corrector compounds supplied from AbbVie using a fragment based, biochemical approach. Rescue of the channel function of W1282X.-CFTR protein by NMD inhibition and small molecule protein modulators was studied using a bronchial cell line engineered to express W1282X and in primary nasal epithelial cultures derived from four patients homozygous for this mutation. RESULTS We confirmed previous studies showing that inhibition of NMD using the inhibitor: SMG1i, led to an increased abundance of the shorter transcript in a bronchial cell line. Interestingly, on top of SMG1i, treatment with a combination of two new correctors developed by Galapagos/AbbVie (AC1 and AC2-2, separately targeting either the first or second half of CFTR and promoting assembly, significantly increased the potentiated channel activity by the mutant in the bronchial epithelial cell line and in patient-derived nasal epithelial cultures. The average rescue effect in primary cultures was approximately 50{\%} of the regulated chloride conductance measured in non-CF cultures. CONCLUSIONS These studies provide the first in-vitro evidence in patient derived airway cultures that the functional defects incurred by W1282X, has the potential to be effectively repaired pharmacologically.
International forum of allergy {\&} rhinology 2020 sep
Interleukin 13 (IL-13) alters hypoxia-associated genes and upregulates CD73.
Abstract
Abstract
BACKGROUND Interleukin 13 (IL-13) is a pleiotropic cytokine that has been shown to be important in the pathogenesis of chronic rhinosinusitis with nasal polyps (CRSwNP) and other type 2 inflammation-related diseases. Increased IL-13 expression can elicit several pro-inflammatory effects, including eosinophilia, and pathology such as increased mucus secretion. Polypogenesis in chronic rhinosinusitis (CRS) can be caused by hypoxia, which can also lead to hyperpermeability of airway epithelium and epithelium-to-mesenchymal translation through the upregulation of hypoxia-associated genes, such as HIF1. Whether T-helper 2 (Th2) inflammatory cytokines, such as IL-13, can also induce sinonasal epithelial hypoxia-associated genes is currently unknown. METHODS Human air-liquid interface (ALI) sinonasal epithelial cell cultures treated with recombinant IL-13 were analyzed by real-time polymerase chain reaction (PCR) and flow cytometry to determine the effect on epithelial cells. RESULTS Whole tissue from CRSwNP subjects showed increased HIF1A gene expression. Treatment of fully differentiated human ALI cultures with IL-13 resulted in a concurrent increase in HIF1A and ARNT messenger RNA (mRNA) expression. However, the level of EPAS1 expression was significantly reduced. IL-13 also had a dose-dependent response on the expression of HIF genes and the time course experiment showed peak expression of HIF1A and ARNT at 5 to 7 days poststimulation. Remarkably, CD73 surface expression also peaked at day 5 poststimulation. CONCLUSION Our data suggests that IL-13 can induce hypoxia signaling pathway genes leading to surface expression of CD73, which has an anti-inflammatory effect.
Cells 2020 sep
Ionocytes and CFTR Chloride Channel Expression in Normal and Cystic Fibrosis Nasal and Bronchial Epithelial Cells.
Abstract
Abstract
The airway epithelium contains ionocytes, a rare cell type with high expression of Forkhead Box I1 (FOXI1) transcription factor and Cystic Fibrosis Transmembrane conductance Regulator (CFTR), a chloride channel that is defective in cystic fibrosis (CF). Our aim was to verify if ionocyte development is altered in CF and to investigate the relationship between ionocytes and CFTR-dependent chloride secretion. We collected nasal cells by brushing to determine ionocyte abundance. Nasal and bronchial cells were also expanded in vitro and reprogrammed to differentiated epithelia for morphological and functional studies. We found a relatively high ({\~{}}3{\%}) ionocyte abundance in ex vivo nasal samples, with no difference between CF and control individuals. In bronchi, ionocytes instead appeared very rarely as previously reported, thus suggesting a possible proximal-distal gradient in human airways. The difference between nasal and bronchial epithelial cells was maintained in culture, which suggests an epigenetic control of ionocyte development. In the differentiation phase of the culture procedure, we used two media that resulted in a different pattern of CFTR expression: confined to ionocytes or more broadly expressed. CFTR function was similar in both conditions, thus indicating that chloride secretion equally occurs irrespective of CFTR expression pattern.
Developmental cell 2020 oct
Comparative Super-Resolution Mapping of Basal Feet Reveals a Modular but Distinct Architecture in Primary and Motile Cilia.
Abstract
Abstract
In situ molecular architecture analysis of organelles and protein assemblies is essential to understanding the role of individual components and their cellular function, and to engineering new molecular functionalities. Through a super-resolution-driven approach, here we characterize the organization of the ciliary basal foot, an appendage of basal bodies whose main role is to provide a point of anchoring to the microtubule cytoskeleton. Quantitative image analysis shows that the basal foot is organized into three main regions linked by elongated coiled-coil proteins, revealing a conserved modular architecture in primary and motile cilia, but showing distinct features reflecting its specialized functions. Using domain-specific BioID proximity labeling and super-resolution imaging, we identify CEP112 as a basal foot protein and other candidate components of this assembly, aiding future investigations on the role of basal foot across different cilia systems.
