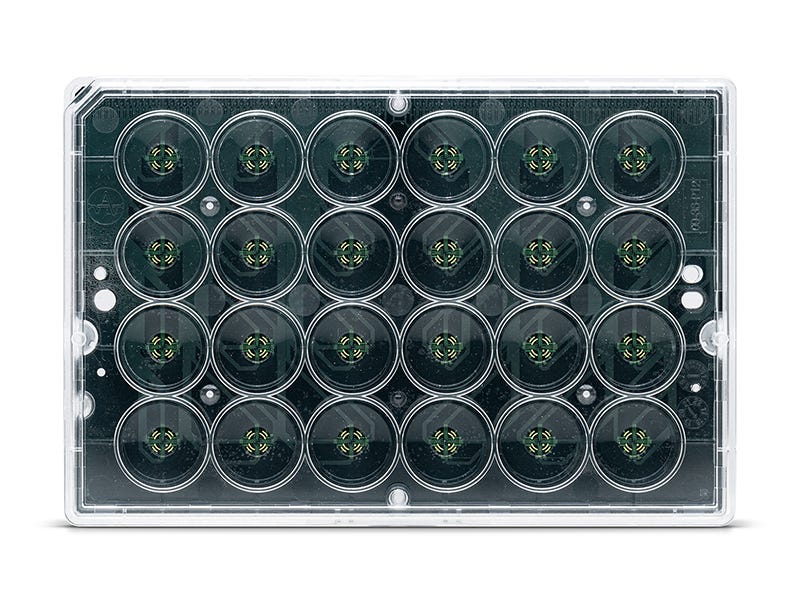

BioCircuit MEA™ Plate

Multiwell multi-electrode array (MEA) plate, clear polystyrene walls with an opaque bottom; 24-, 48-, 96-well formats

Loading...



BioCircuit MEA™ Plate

Multiwell multi-electrode array (MEA) plate, clear polystyrene walls with an opaque bottom; 24-, 48-, 96-well formats

Catalog #
(Select a product)
Multiwell multi-electrode array (MEA) plate, clear polystyrene walls with an opaque bottom; 24-, 48-, 96-well formats
Request Pricing
Add to Wish List

Product Advantages


  • Achieve high-quality, high-throughput MEA data from neurons or cardiomyocytes at the lowest cost per well

  • Ensure precise droplet placement over electrodes and robust electrical recordings with on-plate spotting guides

  • Record electrical activity or stimulate cells with independent control over each individual electrode

  • Maintain an optimal cell environment throughout studies with evaporation-reducing lids and built-in humidity chambers


Products for Your Protocol
To see all required products for your protocol, please consult the Protocols and Documentation.
  1. Maestro Pro™
    Maestro Pro™

    High-throughput multiwell multi-electrode array (MEA) system with 768 channels

  2. Maestro Edge™
    Maestro Edge™

    Multiwell multi-electrode array (MEA) system with 384 channels

  3. Software Modules for Maestro MEA™ Systems (Activity Map)
    Software Modules for Maestro MEA™ Systems

    Data acquisition and analysis modules for Maestro Pro™ and Edge™ MEA systems

Overview

Propel your multi-electrode array (MEA) experiments forward with high-throughput MEA plates that deliver high-quality functional data at the lowest cost per well. Compatible with the Maestro Pro™ and Maestro Edge™ MEA systems by Axion BioSystems®, BioCircuit MEA™ Plates capture low-noise, high-resolution recordings from all excitable cell types (e.g. neurons, cardiomyocytes). To streamline plate preparation, each well has a spotting guide that ensures droplets are accurately placed over microelectrodes. BioCircuit MEA™ plates have clear polystyrene walls and opaque well bottoms, and are available in 24-, 48-, and 96-well formats, with 16, 16, and 8 gold electrodes per well, respectively. While each electrode is independently capable of recording and stimulation, 24- and 48-well plates are equipped with an additional stimulation electrode that provides superior stimulation capacity. Evaporation-reducing lids and built-in humidity chambers help maintain an optimal cell environment throughout your short- and long-term studies.

Five plates are provided in each package.

If you would prefer MEA plates with transparent well bottoms that enable clear cell culture visualization, we recommend CytoView MEA™ Plates, which are available in 6-, 24-, 48-, and 96-well formats.
Application
Characterization, Functional Assay, Phenotyping, Toxicity Assay
Brand
Maestro
Area of Interest
Disease Modeling, Drug Discovery and Toxicity Testing, Neuroscience

Data Figures

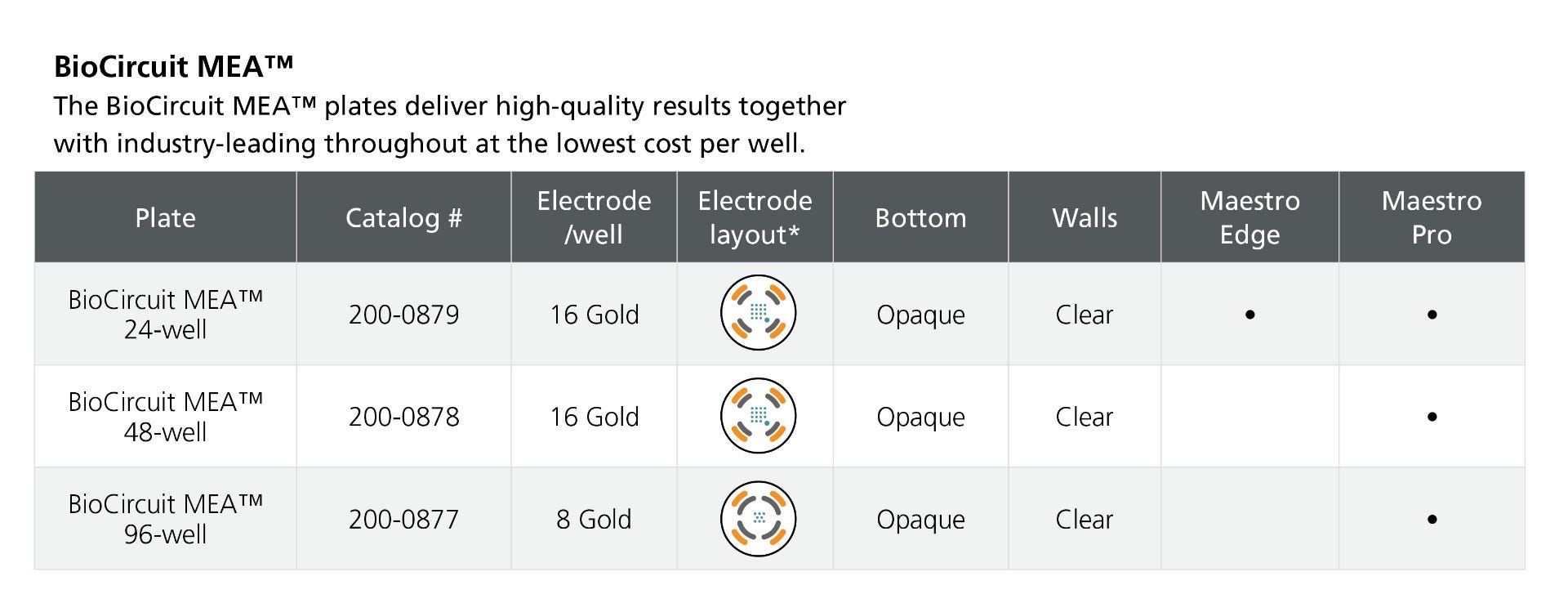

Overview of BioCircuit MEA™ plate specifications.

Table 1. Overview of CytoView MEA™ Plate Specifications

*Schematic of well illustrates recording electrodes (blue), grounds (orange), on-plate spotting guides (gray), and where present, large dedicated stimulation electrodes (blue).
