Culture and Analysis of Hematopoietic Progenitor Cells in CFU Assays

The colony-forming unit (CFU) assay is one of the most widely used assays for  hematopoietic stem and progenitor cells (HSPCs). CFU assays allow measurement of the proliferation and differentiation ability of individual cells within a sample. The potential of these cells is measured by the observation of the colonies (consisting of more differentiated cells) produced by each input progenitor cell. About 14 days of culture is sufficient to allow colonies to grow to a size which allows accurate counting and identification, though shorter periods may be used in certain situations.

Previously, we covered topics related to the CFU assay such as determining the plating density appropriate for hematopoietic cell samples enriched with HetaSep™, and the importance of ensuring proper hydration during culture. The next step for correctly using the CFU assay is to have proper identification and counting methods to analyze the colonies that have grown.

The numbers and types of colonies grown in culture are dependent both on the cell population plated and on the MethoCult™ medium used. Complete MethoCult™ media (e.g. MethoCult™ H4434 Classic) contain cytokines, including erythropoietin (EPO), that support the formation of granulocyte, monocyte, erythroid and mixed colonies, which contain all three lineages in addition to megakaryocytes. These colonies can be identified on the basis of the morphology of the cells and, in the case of erythroid and mixed colonies, the red colour observed in cells expressing hemoglobin.

It is not always easy to accurately identify the different colony types present in cultures, particular for those who are new to this assay, or are using atypical cell sources or samples. Training by experienced users is often an essential part of becoming proficient at counting and classifying colonies in the CFU assay.

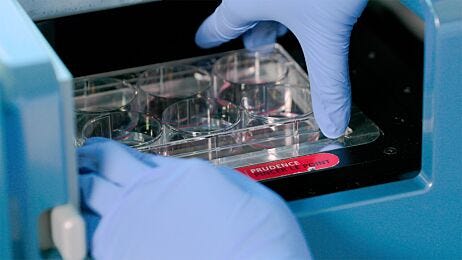

One way to simplify the analysis of CFU assays while still obtaining information about lineage-specific progenitor cell growth is to perform assays in lineage-specific MethoCult™ media (see Tables 1 and 2) in which all colonies are derived from progenitor cell subtype, e.g., only CFU-GM or BFU-E. Colony counting and classification can also be done automatically with the STEMvision™ instrument for imaging and analysis of human and mouse CFU assays. Analysis software comes in the form of algorithms designed specifically for particular MethoCult™ medium formulations (Tables 1 and 2). An important advantage of STEMvision™ is that it takes away the subjectivity of manual counting and allows for standardization in the analysis of CFU assays within and between laboratories. STEMvision™ is also useful for applications in which manual colony identification and counting is prefered, as the software takes high resolution images of each culture well. These images can be used as a basis for manual counting at any time, with the added benefit of creating permanent records of cultures which may be revisited or reanalyzed at a later time.

CFU Assays with Human Samples

Human CFU assays may be performed in medium which supports the growth of multiple progenitor cell lineages, or in lineage-specific medium which facilitates the use of total manual counts. Automated counts with STEMvision™ instrument provide counts of colonies and classification into progenitor cell subtypes for human samples.

Table 1. Medium for Human Progenitor Cell Subsets

Progenitor Cell Type
MethoCult™ Medium
STEMvision™ Algorithm
Multiple
  • Erythroid (BFU-E, CFU-E with BM)
  • Myeloid (CFU-G/M/GM)
  • Mixed (CFU-GEMM)
Human 14-Day Algorithms*
Myeloid Only
Human 14-Day Algorithms*
Erythroid Only (BFU-E, CFU-E with BM)
-

* STEMvision™ algorithms are available for counting cord blood-**, bone marrow- or peripheral blood-derived colonies.
**MethoCult™ Express medium is also available for performing total colony counts of cord blood samples at 7 days, with the STEMvision™ Human Cord Blood 7-Day  algorithm for analysis.

CFU Assays with Mouse Samples

Mouse CFU assays may be performed in general medium to promote the growth of granulocyte/macrophage and erythroid colonies in the same culture conditions, or in lineage-specific media that support granulocyte/macrophage or erythroid colony formation respectively. STEMvision™ algorithms are available for generating total counts of colonies in each of these media, providing information about multilineage, myeloid and erythroid colony potential, if assays are performed in parallel using the same cell sample in the specific media formulations indicated below.

Table 2. Medium for Mouse Progenitor Cell Subsets

Progenitor Cell Type
MethoCult™ Medium
STEMvision™ Algorithm*
Multiple
  • Myeloid (CFU-G/M/GM)
  • Erythroid (BFU-E)
  • Mixed (CFU-GEMM)
Mouse Total (Catalog #22008)
Myeloid  (CFU-G/M/GM)
Mouse Myeloid (Catalog #22009)
Erythroid (BFU-E)
Mouse Erythroid (Catalog #22010)

*STEMvision™ algorithms are available for use with CFU assays of mouse bone marrow only.

For more information about performing and analyzing CFU assays with MethoCult™ and STEMvision™ please contact techsupport@stemcell.com.

This tech tip is published as part of our Hematopoiesis Hub. Visit to find more tips about classic and new products, see conversations with experts in the field about their science, request a wallchart and more!
