Figure 1. CFU-F Assay Comparing Mouse Bone Marrow (BM) MSCs Derived and Cultured in MesenCult™ Expansion Medium With and Without MesenPure™, and Other Commercially Available Media

Numerous CFU-F colonies were observed in cultures maintained in (A) MesenCult™ Expansion Medium (Control) and in (B) same medium containing MesenPure™. Few to no colony formation were observed when cultures were maintained in (C) Commercial Medium 1 or (D) Commercial Medium 2. Seeding density: 5x10^4 cells/cm^2.

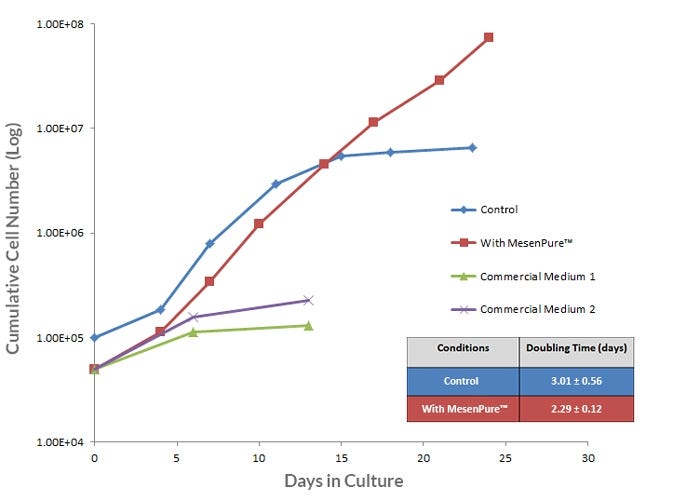

Figure 2. Long-Term Expansion of Mouse BM-Derived MSCs is Observed When Cells are Cultured in MesenCult™ Expansion Medium

Mouse BM MSCs, derived and cultured in MesenCult™ Expansion Medium (Control), show superior long-term expansion rate compared to Commercial Medium 1 and 2. The addition of MesenPure™ enriches for MSCs as early as passage 0 and further improves the expansion rate beyond passage 8. The doubling time of mouse MSCs cultured with or without MesenPure™ are 2.29 and 3.01, respectively. BM MSCs culture-expanded using the MesenCult™ Expansion Kit, with or without MesenPure™, were done under hypoxic conditions. BM MSCs culture-expanded in Commercial Medium 1 and 2 were culture-expanded under normoxic conditions as recommended by their protocols. Data shown from one representative experiment (n=3).

Figure 3. Mouse BM- and Compact Bone (CB)-Derived MSCs Culture-expanded in MesenCult™ Expansion Medium With or Without MesenPure™ Maintain Multi-Lineage Differentiation Potential

Enriched populations of MSCs were observed at earlier passages upon addition of MesenPure™, which showed increased and more dense differentiation than control cultures. (A) Mouse BM MSCs culture-expanded in MesenCult™ Expansion Medium (Control) differentiated into (B) adipocytes; and (C) osteoblasts. (D) Mouse BM-derived MSCs culture-expanded with MesenPure™ differentiated into (E) adipocytes; and (F) osteoblasts . Differentiation of mouse BM MSCs into chondrocytes is in progress. (G) Mouse CB MSCs culture-expanded in MesenCult™ Expansion Medium (Control) differentiated into (H) adipocytes, (I) osteoblasts and (J) chondrocytes. Adipose-derived mesenchymal stem and progenitor cells, and mouse embryonic fibroblasts (MEFs) were derived and culture-expanded using the MesenCult™ Expansion Kit. These cells were also differentiated towards the adipogenic and osteogenic lineages (data not shown). Adipocytes were stained with Oil Red O staining. Osteoblasts were stained with Alkaline phosphatase and silver nitrate (von Kossa). Chondrocytes were stained with Alcian Blue and Nuclear Fast Red. Images were taken at passage 2.

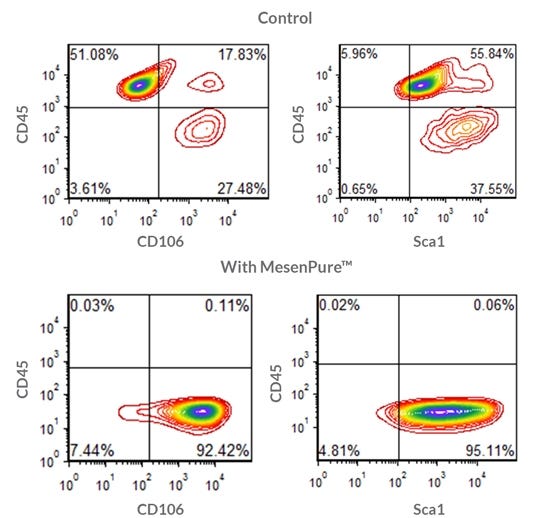

Figure 4. Flow Cytometric Analysis of Culture-Expanded Mouse BM-Derived MSCs Using the MesenCult™ Expansion Kit

Mouse BM MSCs were culture-expanded in MesenCult™ Expansion Medium (Control) or with MesenPure™. MSCs from passage 2 were stained for the mesenchymal surface markers, CD106 and Sca1, and the hematopoietic marker, CD45. Stained cells were then analyzed by flow cytometry. MSCs culture-expanded in Control medium show distinct populations of CD45+ hematopoietic cells and CD45- (CD106+ and Sca1+) MSCs. Upon addition of MesenPure™ to the Control Medium, an enriched and homogenous population of CD45- (CD106+ and Sca1+) MSCs are obtained.
