EasySep™ Human Monocyte Enrichment Kit without CD16 Depletion

Immunomagnetic negative selection cell isolation kit

More Views

From: 740 USD


* Required Fields

Catalog # (Select a product)
Immunomagnetic negative selection cell isolation kit
From: 740 USD

Required Products


The EasySep™ Human Monocyte Enrichment Kit without CD16 Depletion is designed to isolate monocytes and CD14+CD16+ monocytes from fresh or previously frozen peripheral blood mononuclear cells by negative selection. The CD14+CD16+ subset of monocytes (~10% in blood of healthy individuals) has characteristics of tissue macrophages and expands greatly in acute and chronic inflammatory disease. Unwanted cells are targeted for removal with Tetrameric Antibody Complexes recognizing non-monocyte cells and magnetic particles. The cocktail also contains and antibody to human Fc receptor to minimize nonspecific binding. The labeled cells are separated using an EasySep™ magnet without the use of columns. Desired cells are poured off into a new tube. For applications in which removal of all CD16+ cells is desired, we recommend the EasySep™ Human Monocyte Enrichment Kit (Catalog #19359), which contains anti-CD16.
• Fast, easy-to-use and column-free
• Up to 81% purity
• Untouched, viable cells
  • EasySep™ Human Monocyte Enrichment Kit without CD16 Depletion (Catalog #19058)
    • EasySep™ Human Monocyte Enrichment Cocktail without CD16 Depletion, 1 mL
    • EasySep™ Magnetic Particles, 1 mL
  • RoboSep™ Human Monocyte Enrichment Kit without CD16 Depletion with Filter Tips (Catalog #19058RF)
    • EasySep™ Human Monocyte Enrichment Cocktail without CD16 Depletion, 1 mL
    • EasySep™ Magnetic Particles, 1 mL
    • RoboSep™ Buffer (Catalog #20104)
    • RoboSep™ Filter Tips (Catalog #20125)
Magnet Compatibility:
• EasySep™ Magnet (Catalog #18000)
• “The Big Easy” EasySep™ Magnet (Catalog #18001)
• Easy 50 EasySep™ Magnet (Catalog #18002)
• EasyPlate™ EasySep™ Magnet (Catalog 18102)
• RoboSep™-S (Catalog #21000)
Cell Isolation Kits
Cell Type:
Sample Source:
Selection Method:
Cell Isolation
EasySep; RoboSep
Area of Interest:

Scientific Resources

Educational Materials


Frequently Asked Questions

Can EasySep™ be used for either positive or negative selection?

Yes. The EasySep™ kits use either a negative selection approach by targeting and removing unwanted cells or a positive selection approach targeting desired cells. Depletion kits are also available for the removal of cells with a specific undesired marker (e.g. GlyA).

How does the separation work?

Magnetic particles are crosslinked to cells using Tetrameric Antibody Complexes (TAC). When placed in the EasySep™ Magnet, labeled cells migrate to the wall of the tube. The unlabeled cells are then poured off into a separate fraction.

Which columns do I use?

The EasySep™ procedure is column-free. That's right - no columns!

How can I analyze the purity of my enriched sample?

The Product Information Sheet provided with each EasySep™ kit contains detailed staining information.

Can EasySep™ separations be automated?

Yes. RoboSep™, the fully automated cell separator, automates all EasySep™ labeling and cell separation steps.

Can EasySep™ be used to isolate rare cells?

Yes. We recommend a cell concentration of 2x108 cells/mL and a minimum working volume of 100 µL. Samples containing 2x107 cells or fewer should be suspended in 100 µL of buffer.

Are the EasySep™ magnetic particles FACS-compatible?

Yes, the EasySep™ particles are flow cytometry-compatible, as they are very uniform in size and about 5000X smaller than other commercially available magnetic beads used with column-free systems.

Can the EasySep™ magnetic particles be removed after enrichment?

No, but due to the small size of these particles, they will not interfere with downstream applications.

Can I alter the separation time in the magnet?

Yes; however, this may impact the kit's performance. The provided EasySep™ protocols have already been optimized to balance purity, recovery and time spent on the isolation.

For positive selection, can I perform more than 3 separations to increase purity?

Yes, the purity of targeted cells will increase with additional rounds of separations; however, cell recovery will decrease.

How does the binding of the EasySep™ magnetic particle affect the cells? is the function of positively selected cells altered by the bound particles?

Hundreds of publications have used cells selected with EasySep™ positive selection kits for functional studies. Our in-house experiments also confirm that selected cells are not functionally altered by the EasySep™ magnetic particles.

If particle binding is a key concern, we offer two options for negative selection. The EasySep™ negative selection kits can isolate untouched cells with comparable purities, while RosetteSep™ can isolate untouched cells directly from whole blood without using particles or magnets.
Read More

Product Applications

This product is designed for use in the following research area(s) as part of the highlighted workflow stage(s). Explore these workflows to learn more about the other products we offer to support each research area.

Data and Publications

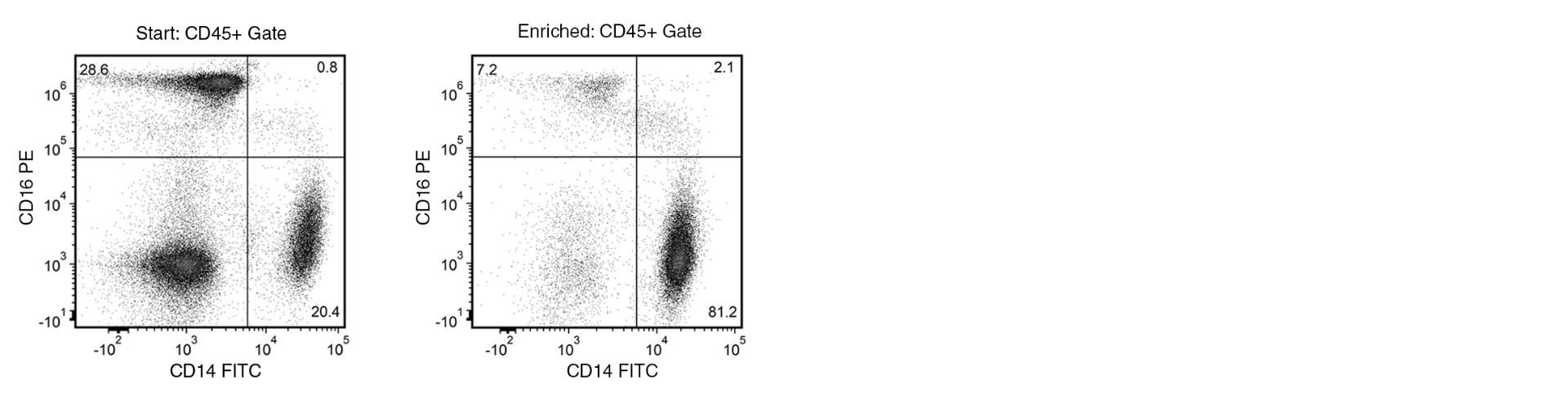

FACS Histogram Results Using EasySep™ Human Monocyte Enrichment Kit Without CD16 Depletion

Figure 1. FACS Histogram Results Using EasySep™ Human Monocyte Enrichment Kit Without CD16 Depletion

Starting with freshly prepared peripheral blood mononuclear cells, the CD14+ cell content of the enriched fraction typically ranges from 73% - 81%. Slightly lower CD14+ cell purities may be obtained from samples that contain a large number of CD16+ cells.


The Journal of Experimental Medicine 2016 MAR

The glycolytic enzyme PKM2 bridges metabolic and inflammatory dysfunction in coronary artery disease.

Shirai T et al.


Abnormal glucose metabolism and enhanced oxidative stress accelerate cardiovascular disease, a chronic inflammatory condition causing high morbidity and mortality. Here, we report that in monocytes and macrophages of patients with atherosclerotic coronary artery disease (CAD), overutilization of glucose promotes excessive and prolonged production of the cytokines IL-6 and IL-1β, driving systemic and tissue inflammation. In patient-derived monocytes and macrophages, increased glucose uptake and glycolytic flux fuel the generation of mitochondrial reactive oxygen species, which in turn promote dimerization of the glycolytic enzyme pyruvate kinase M2 (PKM2) and enable its nuclear translocation. Nuclear PKM2 functions as a protein kinase that phosphorylates the transcription factor STAT3, thus boosting IL-6 and IL-1β production. Reducing glycolysis, scavenging superoxide and enforcing PKM2 tetramerization correct the proinflammatory phenotype of CAD macrophages. In essence, PKM2 serves a previously unidentified role as a molecular integrator of metabolic dysfunction, oxidative stress and tissue inflammation and represents a novel therapeutic target in cardiovascular disease.
Journal of neuroimmunology 2016 JUN

TLR4 induces CCR7-dependent monocytes transmigration through the blood-brain barrier.

Paradis A et al.


In this study, we examined whether bacterial pathogen-associated molecular patterns recognized by toll-like receptors (TLRs) can modify the CCR7-dependent migration of human monocytes. MonoMac-1 (MM-1) cells and freshly isolated human monocytes were cultivated in the presence of agonists for TLR4 (which senses lipopolysaccharides from gram-negative bacteria), TLR1/2 (which senses peptidoglycan from gram-positive bacteria), and TLR9 (which recognizes bacterial DNA rich in unmethylated CpG DNA). CCR7 mRNA transcription was measured using quantitative reverse transcription polymerase chain reaction and protein expression was examined using flow cytometry. CCR7 function was monitored using migration and transmigration assays in response to CCL19/CCL21, which are natural ligands for CCR7. Our results show that TLR4 strongly increases monocyte migratory capacity in response to CCL19 in chemotaxis and transmigration assays in a model that mimics the human blood-brain barrier, whereas TLR1/2 and 9 have no effect. Examination of monocyte migration in response to TLRs that are activated by bacterial components would contribute to understanding the excessive monocyte migration that characterizes the pathogenesis of bacterial infections and/or neuroinflammatory diseases.
The Journal of Immunology 2015 MAR

HIV-1-triggered release of type I IFN by plasmacytoid dendritic cells induces BAFF production in monocytes.

Gomez AM et al.


HIV-1 infection leads to numerous B cell abnormalities, including hypergammaglobulinemia, nonspecific B cell activation, nonspecific class switching, increased cell turnover, breakage of tolerance, increased immature/transitional B cells, B cell malignancies, as well as a loss of capacity to generate and maintain memory, all of which contribute to a global impairment of the immune humoral compartment. Several cytokines and soluble factors, which are increased in sera of HIV-1-infected individuals, have been suggested to directly or indirectly contribute to these B cell dysfunctions, and one of these is the B cell-activating factor (BAFF). We report in this study that HIV-1 (X4- and R5-tropic) upregulates BAFF expression and secretion by human monocytes. Moreover, we show that the virus-mediated production of BAFF by monocytes relies on a type I IFN response by a small percentage of plasmacytoid dendritic cells (pDCs) present in the monocyte cultures. HIV-1-induced type I IFN by pDCs triggers BAFF production in both classical and intermediate monocytes, but not in nonclassical monocytes, which nonetheless display a very strong basal BAFF production. We report also that basal BAFF secretion was higher in monocytes obtained from females compared with those from male donors. This study provides a novel mechanistic explanation for the increased BAFF levels observed during HIV-1 infection and highlights the importance of pDC/monocyte crosstalk to drive BAFF secretion.
PloS one 2015

A Single-Cell Gene-Expression Profile Reveals Inter-Cellular Heterogeneity within Human Monocyte Subsets.

Gren ST et al.


Human monocytes are a heterogeneous cell population classified into three different subsets: Classical CD14++CD16-, intermediate CD14++CD16+, and non-classical CD14+CD16++ monocytes. These subsets are distinguished by their differential expression of CD14 and CD16, and unique gene expression profile. So far, the variation in inter-cellular gene expression within the monocyte subsets is largely unknown. In this study, the cellular variation within each human monocyte subset from a single healthy donor was described by using a novel single-cell PCR gene-expression analysis tool. We investigated 86 different genes mainly encoding cell surface markers, and proteins involved in immune regulation. Within the three human monocyte subsets, our descriptive findings show multimodal expression of key immune response genes, such as CD40, NFⱪB1, RELA, TLR4, TLR8 and TLR9. Furthermore, we discovered one subgroup of cells within the classical monocytes, which showed alterations of 22 genes e.g. IRF8, CD40, CSF1R, NFⱪB1, RELA and TNF. Additionally one subgroup within the intermediate and non-classical monocytes also displayed distinct gene signatures by altered expression of 8 and 6 genes, respectively. Hence the three monocyte subsets can be further subdivided according to activation status and differentiation, independently of the traditional classification based on cell surface markers. Demonstrating the use and the ability to discover cell heterogeneity within defined populations of human monocytes is of great importance, and can be useful in unravelling inter-cellular variation in leukocyte populations, identifying subpopulations involved in disease pathogenesis and help tailor new therapies.
Journal of virology 2010 SEP

HIV infection upregulates caveolin 1 expression to restrict virus production.

Lin S et al.


Caveolin 1 (Cav-1) is a major protein of a specific membrane lipid raft known as caveolae. Cav-1 interacts with the gp41 of the human immunodeficiency virus (HIV) envelope, but the role of Cav-1 in HIV replication and pathogenesis is not known. In this report, we demonstrate that HIV infection in primary human monocyte-derived macrophages (MDMs), THP-1 macrophages, and U87-CD4 cells results in a dramatic upregulation of Cav-1 expression mediated by HIV Tat. The activity of p53 is essential for Tat-induced Cav-1 expression, as our findings show enhanced phosphorylation of serine residues at amino acid positions 15 and 46 in the presence of Tat with a resulting Cav-1 upregulation. Furthermore, inhibition of p38 mitogen-activated protein kinase (MAPK) blocked phosphorylation of p53 in the presence of Tat. Infection studies of Cav-1-overexpressing cells reveal a significant reduction of HIV production. Taken together, these results suggest that HIV infection enhances the expression of Cav-1, which subsequently causes virus reduction, suggesting that Cav-1 may contribute to persistent infection in macrophages.
