Anti-Mouse CD49b Antibody, Clone DX5

Rat monoclonal IgM antibody against mouse CD49b (integrin α2)

Anti-Mouse CD49b Antibody, Clone DX5

Rat monoclonal IgM antibody against mouse CD49b (integrin α2)

From: 141 USD
Catalog #
(Select a product)
Rat monoclonal IgM antibody against mouse CD49b (integrin α2)
Add to Wish List

Overview

The DX5 antibody reacts with murine CD49b (integrin α2), an ~150 kDa type 1 transmembrane glycoprotein that associates non-covalently with CD29 (integrin β1) to form the heterodimeric CD49b/CD29 complex known as VLA-2, a receptor for extracellular matrix proteins such as collagen, E-cadherin, fibronectin, and laminin. CD49b is highly expressed by platelets and is found on a majority of NK cells, on NKT cells, and on a small subset of CD8+ T cells; the latter population increases substantially following viral infection. CD49b is also expressed by several tissues, including intestine, kidney, mammary gland, and lung. The DX5 antibody is particularly useful for identifying NK cells in mice lacking the NK1.1 antigen. Binding of the DX5 antibody has not been observed to affect the function of the VLA-2 integrin. DX5 binding is, however, blocked by the clone HMα2 antibody.

This antibody clone has been verified for purity assessments of cells isolated with EasySep™ Mouse NK Cell Enrichment Kit (Catalog #19755).
Subtype
Primary Antibodies
Target Antigen
CD49b (Integrin α2)
Alternative Names
α2 integrin, Integrin α2 chain, VLA-2α chain
Reactive Species
Mouse
Conjugation
Alexa Fluor 488, APC, Biotin, FITC, Pacific Blue, PE, Unconjugated
Host Species
Rat
Cell Type
NK Cells
Species
Mouse
Application
Cell Isolation, Flow Cytometry, Immunohistochemistry
Area of Interest
Immunology
Clone
DX5
Gene ID
16398
Isotype
IgM, kappa

Data Figures

Data for Alexa Fluor® 488-Conjugated

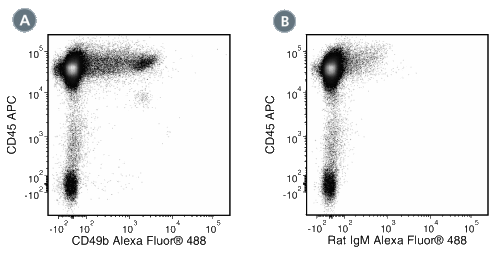

Figure 1. Data for Alexa Fluor® 488-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, Alexa Fluor® 488 and Anti-Mouse CD45 Antibody, Clone 30-F11, APC (Catalog #60030AZ). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Rat IgM, kappa Isotype Control Antibody, Clone RTK2118, Alexa Fluor® 488 (Catalog #60074AD) and Anti-Mouse CD45 Antibody, Clone 30-F11, APC.

Data for PE-Conjugated

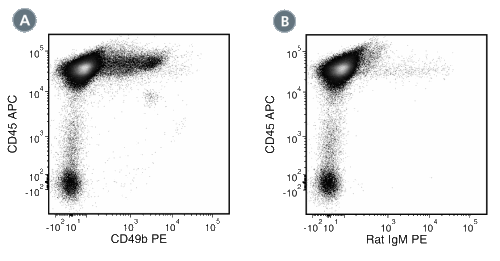

Figure 2. Data for PE-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, PE and Anti-Mouse CD45 Antibody, Clone 30-F11, APC (Catalog #60030AZ). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Rat IgM, kappa Isotype Control Antibody, Clone RTK2118, PE (Catalog #60074PE) and Anti-Mouse CD45 Antibody, Clone 30-F11, APC.

Data for Unconjugated

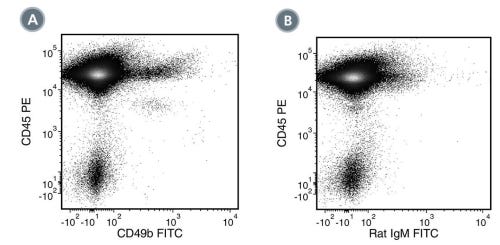

Figure 3. Data for Unconjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, followed by a mouse anti-rat IgM antibody, FITC and Anti-Mouse CD45 Antibody, Clone 30-F11, PE (Catalog #60030PE). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Rat IgM, kappa Isotype Control Antibody, Clone RTK2118 (Catalog #60074), followed by a mouse anti-rat IgM antibody, FITC and Anti-Mouse CD45 antibody, Clone 30-F11, PE.

Data for APC-Conjugated

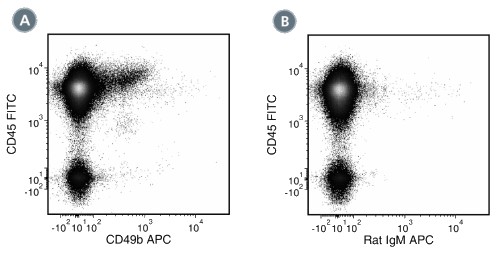

Figure 4. Data for APC-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, APC and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC (Catalog #60030FI). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Rat IgM, kappa Isotype Control Antibody, Clone RTK2118, APC (Catalog #60074AZ) and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC.

Data for Biotin-Conjugated

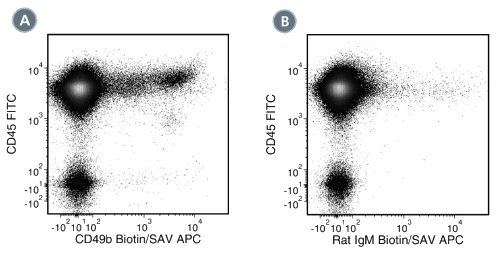

Figure 5. Data for Biotin-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, Biotin, followed by streptavidin (SAV) APC and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC (Catalog #60030FI). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Rat IgM, kappa Isotype Control Antibody, Clone RTK2118, Biotin (Catalog #60074BT), followed by SAV APC and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC.

Data for FITC-Conjugated

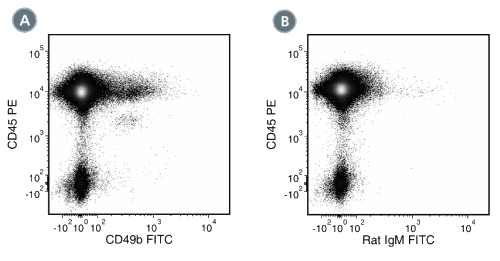

Figure 6. Data for FITC-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, FITC and Anti-Mouse CD45 Antibody, Clone 30-F11, PE (Catalog #60030PE). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Rat IgM, kappa Isotype Control Antibody, Clone RTK2118, FITC (Catalog #60074FI) and Anti-Mouse CD45 Antibody, Clone 30-F11, PE.

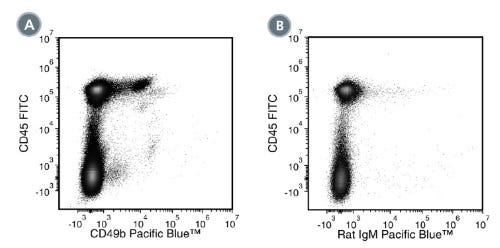

Figure 7. Data for PB-Conjugated

(A) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with Anti-Mouse CD49b Antibody, Clone DX5, Pacific Blue™ and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC (Catalog #60030FI). (B) Flow cytometry analysis of C57BL/6 mouse splenocytes labeled with a rat IgM, kappa Pacific Blue™ isotype control antibody and Anti-Mouse CD45 Antibody, Clone 30-F11, FITC.

Protocols and Documentation

Find supporting information and directions for use in the Product Information Sheet or explore additional protocols below.

Document Type
Product Name
Catalog #
Lot #
Language
Catalog #
60020AD
Lot #
All
Language
English
Catalog #
60020PB.1, 60020PB
Lot #
All
Language
English
Catalog #
60020PE.1, 60020PE
Lot #
All
Language
English
Catalog #
60020FI.1, 60020FI
Lot #
All
Language
English
Catalog #
60020BT, 60020BT.1
Lot #
All
Language
English
Catalog #
60020
Lot #
All
Language
English
Catalog #
60020AZ.1, 60020AZ
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020AD
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020PB.1, 60020PB
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020PE.1, 60020PE
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020FI.1, 60020FI
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020BT, 60020BT.1
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020
Lot #
All
Language
English
Document Type
Safety Data Sheet
Catalog #
60020AZ.1, 60020AZ
Lot #
All
Language
English

Applications

This product is designed for use in the following research area(s) as part of the highlighted workflow stage(s). Explore these workflows to learn more about the other products we offer to support each research area.

Resources and Publications
