HemaTox™ Myeloid Kit
Serum-free medium and supplement for the measurement of drug toxicity on myeloid cells
Thank you for your interest in this product. Please provide us with your contact information and your local representative will contact you with a customized quote. Where appropriate, they can also assist you with a(n):
Estimated delivery time for your area
Product sample or exclusive offer
Compared to using the colony-forming unit (CFU) assay, the liquid culture-based HemaTox™ assay is more flexible: you can add test compounds at various points throughout the culture and measure their effects on more primitive or more mature progenitor cells. The HemaTox™ Myeloid Kit promotes the proliferation of CD34+ HSPCs and their differentiation into cells expressing myeloid markers such as CD13, CD14, and CD15.
Users can choose the readout method to quantify the response and estimate the IC50 and IC90 of each compound tested. Test up to 160 conditions—in triplicate—per kit in 5 x 96-well plates. This kit may be used on its own or in combination with HemaTox™ Erythroid Kit (Catalog #09701) or HemaTox™ Megakaryocyte Kit (Catalog #09707) to assess lineage-specific drug toxicity in parallel.

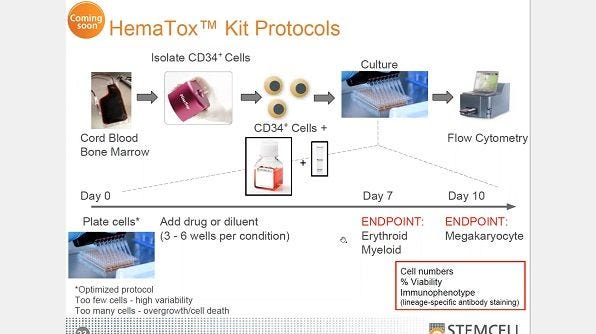

Figure 1. General HemaTox™ Myeloid Kit Procedure
*The cell isolation step may be omitted if pre-enriched CD34+ cells are used.
Figure 2. Flow Cytometry Plot Showing Cells Produced After Culture of CD34+ HSPCs with the HemaTox™ Myeloid Kit
(A) Human CB CD34+ cells were cultured with the HemaTox™ Myeloid Kit using the protocol as written in the Product Information Sheet (PIS). (B) After the appropriate culture period, cells were harvested and stained for cell surface proteins expressed on myeloid (CD13 and CD15) cells.

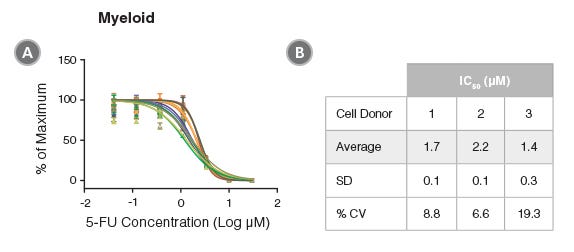

Figure 3. Reproducibility of HemaTox™ Myeloid Kit Results Between Experiments and Using Different CD34+ Cell Preparations
(A) Dose-response curves were generated from titrations of 5-FU added to human CB CD34+ cells isolated from 3 donors and cultured with the HemaTox™ Myeloid Kit. Three to five separate experiments were performed with cells from each donor. In each assay similar IC50 values were obtained with cells from different donors and in different experiments with cells from the same donor. Shown are values normalized to the percentages (%) of maximum cell growth without drug. Despite differences in absolute cell counts, curves are reproducible when normalized within each experiment. (B) Table showing IC50 values generated for 5-FU in culture with the myeloid kit including standard deviation (SD) and the coefficient of variation (% CV) across experiments.

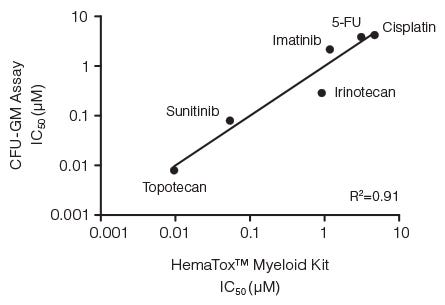

Figure 4. Correlation Between IC50 Values for Six Drugs Measured Using the CFU-GM Assay and the 96-Well Plate Liquid Culture-Based HemaTox™ Myeloid Kit
Human BM CD34+ cells were cultured in colony-forming unit - granulocyte/macrophage (CFU-GM) assays with MethoCult™ medium and in liquid culture with the HemaTox™ Myeloid Kit. IC50 values generated using each assay were plotted on the X and Y axes and shown to be highly correlated with a coefficient of determination (R2) of 0.91.

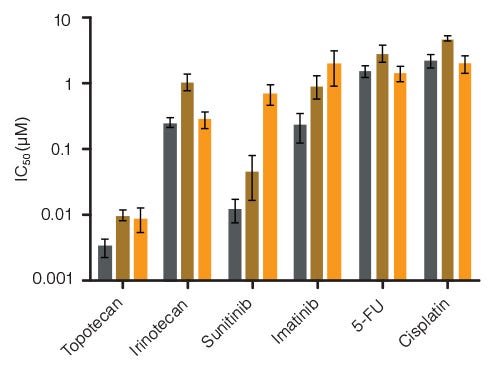

Figure 5. Lineage-Specific Differences in Hematotoxicity Identified with HemaTox™ Erythroid, Myeloid and Megakaryocyte Kits
Results show average IC50 values for each drug tested on human BM CD34+ cells using the HemaTox™ Erythroid (grey), Myeloid (gold) and Megakaryocyte (orange) Kits. Most drugs show similar toxicity for each lineage but some, such as Sunitinib, are ~100-fold more toxic for erythroid than for megakaryocyte progenitor differentiation with intermediate toxicity for myeloid progenitor differentiation. Vertical lines indicate standard error of the mean (SEM) (n = 4 - 8).
Protocols and Documentation
Find supporting information and directions for use in the Product Information Sheet or explore additional protocols below.
Resources and Publications
Educational Materials (4)
