EasySep™ Cell Separation Magnets

For Column-Free Immunomagnetic Cell Isolation

The EasySep™ immunomagnetic cell isolation system combines the specificity of monoclonal antibodies with the simplicity of a column-free magnetic system for the isolation of highly purified cells. The wide range of small and compact EasySep™ magnets used in this immunomagnetic cell isolation application creates tremendous flexibility in the sample volume and throughput of cells that can be processed by a researcher.

Learn more about the EasySep™ cell separation technology >
Use this table to select the appropriate EasySep™ magnet for your research.

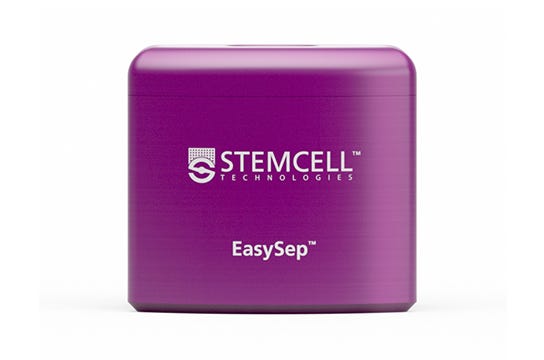

EasySep™ Magnet

EasySep Magnet

Catalog #

18000

Intended Use:

The Iconic Column-Free Cell Isolation Platform

Number of Samples:

1

Start Sample Cell Number Range:

0.1 - 2.5 x 108 cells

Working Volume:
(at 0.5 to 1.0 x 108 cells/mL)

0.1 - 2.5 mL

Required Plasticware:

5 mL (12 x 75 mm) polystyrene round-bottom tube (e.g. Corning® Catalog #352058)

Collection Method:

Pour off

Compatible Kits:

Refer to instructions provided in the EasySep™ cell isolation kits for information on EasySep™ magnet compatibility.

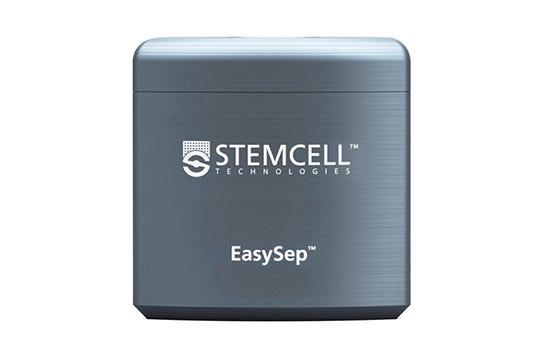

The Big Easy EasySep™ Magnet

Big Easy EasySep Magnet

Catalog #

18001

Intended Use:

For Larger Column-Free Cell Isolation

Number of Samples:

1

Start Sample Cell Number Range:

0.2 - 10 x 108 cells

Working Volume:
(at 0.5 to 1.0 x 108 cells/mL)

0.2 - 10 mL

Required Plasticware:

14 mL (17 x 100 mm) polystyrene round-bottom tube (e.g. Corning® Catalog #352057)

Collection Method:

Pour off

Compatible Kits:

Refer to instructions provided in the EasySep™ cell isolation kits for information on EasySep™ magnet compatibility.

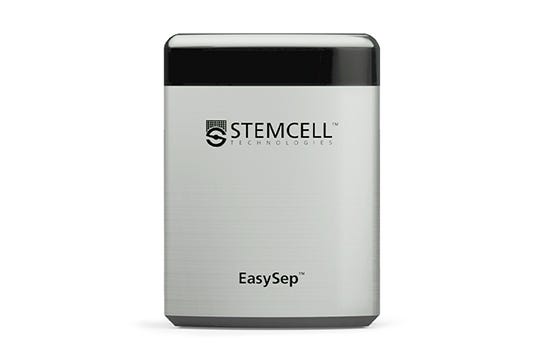

Easy 50 EasySep™ Magnet

Easy 50 EasySep Magnet

Catalog #

18002

Intended Use:

Designed for Very Large-Volume Cell Isolation

Number of Samples:

1

Start Sample Cell Number Range:

0.5 - 40 x 108 cells

Working Volume:
(at 0.5 to 1.0 x 108 cells/mL)

0.5 - 40 mL

Required Plasticware:

50 mL (30 x 115 mm) conical tube (e.g. Corning® Catalog #352070)

Collection Method:

Pipette off

Compatible Kits:

Refer to instructions provided in the EasySep™ cell isolation kits for information on EasySep™ magnet compatibility.

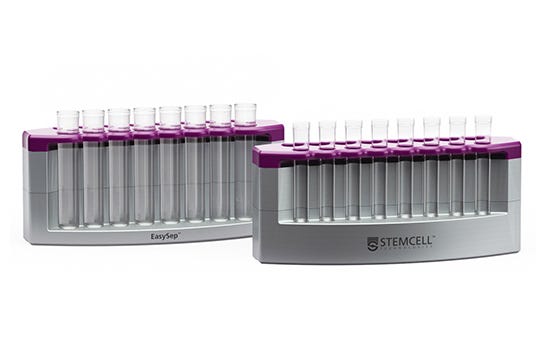

EasyEights™ EasySep™ Magnet

Catalog #

18103

Intended Use:

For Simultaneously Processing Multiple Samples

Number of Samples:

8 on each side = 16 total

Start Sample Cell Number Range:

0.125 - 2.0 x 108 cells per 5 mL tube
0.25 - 8.0 x 108 cells per 14 mL tube

Working Volume:
(at 0.5 to 1.0 x 108 cells/mL)

0.25 - 2.0 mL per 5 mL tube
0.5 - 8.0 mL per 14 mL tube

Required Plasticware:

5 mL (12 x 75 mm) polystyrene round-bottom tube (e.g. Corning® Catalog #352058) or 14 mL (17 x 100 mm) polystyrene round-bottom tube (e.g. Corning® Catalog #352057)

Collection Method:

Pipette off

Compatible Kits:

Refer to instructions provided in the EasySep™ cell isolation kits for information on EasySep™ magnet compatibility.

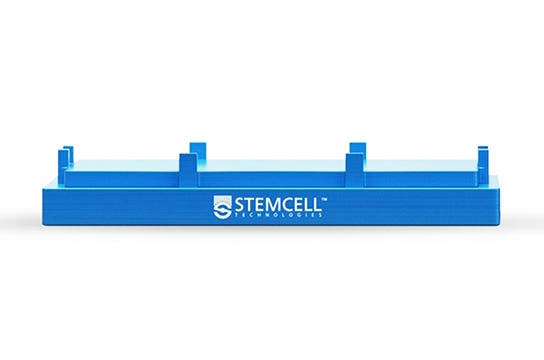

EasyPlate™ EasySep™ Magnet

Catalog #

18102

Intended Use:

Enables Simultaneous 96-Small Volume Cell Isolations

Number of Samples:

96

Start Sample Cell Number Range:

0.025 - 0.2 x 108 cells per well

Working Volume:
(at 0.5 to 1.0 x 108 cells/mL)

0.05 - 0.2 mL

Required Plasticware:

Round bottom, non-tissue culture-treated 96-well plate (e.g. Costar Catalog #3788)

Collection Method:

Pipette off

Compatible Kits:

Refer to instructions provided in the EasySep™ cell isolation kits for information on EasySep™ magnet compatibility.
